CONNECTORS
Tini-Q-G Cord & Panel Style Series
Tini-Q-G ? Connector Series
?
The Tini-QG Series is a miniature
version of the standard QG Series.
49
TA*MB
TA*F
TB*M
TA*FL

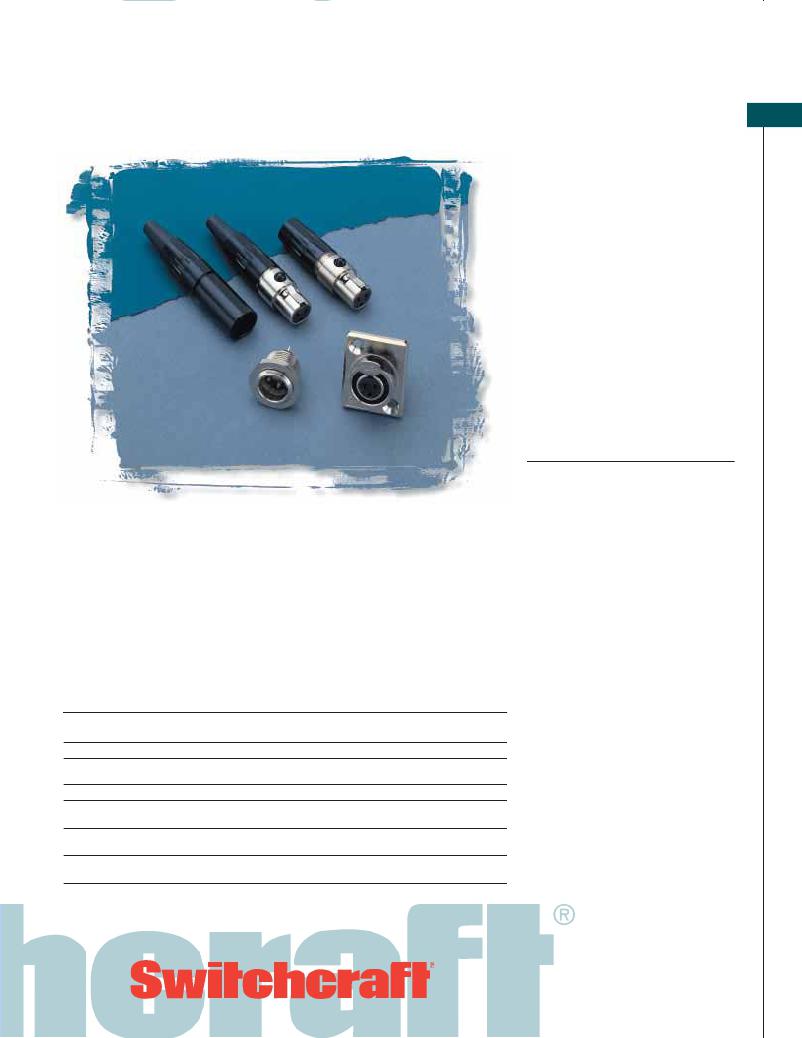

These “mini-XLR’s” come in a wide
variety of configurations. The standard
TA Series cord plugs are available in
3-6 pins or contacts. The L versions,
with their larger strain reliefs, are
available in 3-8 pins or contacts.The
TB and TY Series are panel mount
connectors. The TB Series is a male
connector, featuring a round panel
cut-out and 3-8 pins. The TY Series
is a female connector, featuring a
rectangular housing and 3-5 contacts.
The TA and TB Series are available with
a black finish. Gold-plated contacts
are available on all series. Contact
the factory for details.
TY*F
Specifications
Electrical
Materials
Contact Resistance: .010 ohms
Housing: Plugs and Male Receptacles
— Copper alloy, nickel-plated;
Female Receptacles — Die-cast
zinc, nickel-plated
Black Tini-Q-G? Housing: Copper
alloy, black chrome-plated
Pin and Socket Contacts: Copper
alloy, silver-plated
Flex Relief: Molded black
thermoplastic elastomer
Latch Button: Molded black
thermoplastic
Ordering Information
Release Lever and Mounting
Washer: Steel, nickel-plated
Standoff/Ground Terminal and
Cable Clamp: Steel, electrotinned
Inserts and Insulating Spacer:
Molded, high strength thermoplastic
Latch (Female): Copper alloy,
nickel-plated
Mounting Nut: Copper alloy,
nickel-plated
maximum after life (and after
salt spray)
Current Rating (Carry Only): 5A,
125 VAC (4A, 125 VAC on 5
circuit) based on 30?C maximum
Insulation Resistance: 510,000
megohms minimum @ 500
VDC (initial); 10,000 megohms
minimum (after humidity test)
Dielectric Strength: 1,000V (rms)
Mechanical
Life: 5,000 operations minimum
Solderability Standard: Meets EIA
Part Number
TA*F, TA*M
TA*FL, TA*ML
TA*FB, TA*MB
TB*M
Pins/
Style Finish Contacts Notes
Cord Nickel Silver Available in 3 - 6 pins or contacts
Cord Nickel Silver Accommodates large cable,
available in 3 - 8 pins or contacts
Cord Black Silver Available in 3 - 6 pins or contacts
Panel Nickel Silver Male, round flange, threaded,
available in 3 - 8 pins or contacts
RS-186-9E
Mechanical Shock: Meets
Mil-Std-202, method 213B
Vibration: Meets Mil-Std-202,
method 201A
Wire Size: #22 wire gauge solid;
#24 wire gauge stranded
Environmental
TB*MB
Panel
Black
Silver
Male, round flange, threaded,
Thermal Range: -55?C to +85?C
available in 3 - 8 pins or contacts
Humidity: Meets Mil-Std-202,
TY*F
Panel
Nickel
Silver
Female, rectangle flange,
available in 3 - 5 pins or contacts
method 106D
Thermal Shock: Meets
See Page 59 for Mechanical Drawings
Mil-Std-202, method 107D
Salt Spray: Meets Mil-Std-202,
method 101
